PRODUCT

Standard Type(Horizontal scroll)

Standard Type

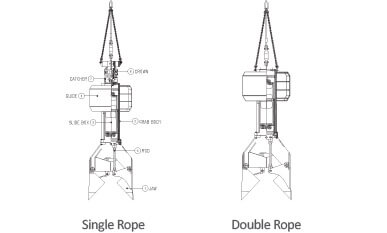

osc10 Model Casing Diameter
[mm]
Jaw Capacity
[ℓ]
Length [mm] Weight [kg]
Single Double Single Double
H1050S 1,200 / 1,120 340 4,784 3,715 4,700 4,200
H1350S 1,500 / 1,400 830 4,956 3,881 5,600 5,100
H1600S 1,800 / 1,680 1,000 5,251 4,176 6,300 5,800
H1800S 2,000 / 1,880 1,150 5,488 4,413 6,900 6,400




Heavy Duty Type(Horizontal scroll)

Heavy Duty Type

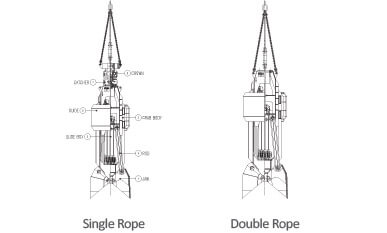

osc11 Model Casing Diameter
[mm]
Jaw Capacity
[ℓ]
Length [mm] Weight [kg]
Single Double Single Double
H1350A 1,500/1,400 800 5,114 4,241 7,000 6,300
H1600A 1,800 / 1,680 1,060 5,211 4,338 8,000 7,300
H1800A 2,000/1,880 1,200 5,303 4,430 8,700 8,000
H1800B 2,000 / 1,880 1,200 6,042 5,097 10,500 9,500
H2250B 2,500 / 2,380 1,800 6,231 5,286 13,100 12,100
H2750B 3,000/2,840 2,300 6,440 5,495 15,500 14,500
H3300C 3,600 / 3,420 7,500 7,765 6,820 26,800 25,800




X-Link Operating Type(Horizontal scroll)

X-Link Operating Type

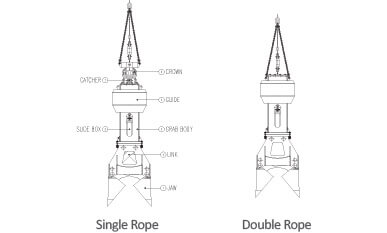

osc12 Model Casing Diameter
[mm]
Jaw Capacity
[ℓ]
Length [mm] Weight [kg]
Single Double Single Double
H750R 900 / 820 125 3,800 3,675 2,700 2,100
H1350R 1,500 / 1,400 905 4,465 3,940 6,550 5,950
H1600R 1,800 / 1,680 1,100 4,715 4,190 8,350 7,650
H1800R 2,000 / 1,880 1,240 5,245 4,720 9,620 8,920
H2250R 2,500 / 2,380 1,800 5,738 5,213 12,650 11,850
H2750R 3,000/2,840 2,700 7,280 6,755 15,950 15,100
