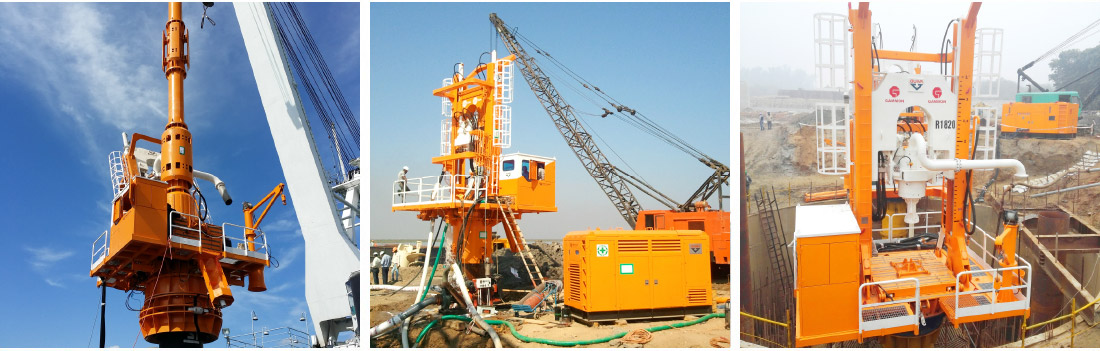

Reverse Circulation Drilling (RCD), also known as airlifting, is an effective drilling method that exploits compressed air, as it is injected into the drill pipe below water level,
to reduce the density of the internal water column and remove slurries through the circulation.
The mixture of water, air and cuttings is then flushed out through the drill pipe into settling tanks.
Using RCD Rigs is highly efficient, safe, and an environmentally friendly solution for drilling large diameters and deep depths. If you fall into one of the following conditions,
RCD is the best solution to deal with it.

RCD Feature

Large Diameter (longer than 800mm).
Deep Depth (higher than 50m).
Hard Rock Drilling (75MPa ~ 250MPa).
Bore Piling in Marine Condition.

RCD System

R.C.D(Reverse Circulation Drilling) System, also Known as air-lift is that compressed air is injected into the drill pipe below water level just above the drill bit.
This reduces the density of the interna water colimn and starts the circulation. The mixture of water, air and cuttings are then flushed out through the drill pipe into setting tanks.



Working with R.C.D system is highly efficient, safe and environmentally friendly solution for drilling large diameter an depth.



rcd

Specification (Horizontal scroll)

SINGLE GRADE & DUAL GRADE 비교
Model R1315 R1815 R1820 R3025 R3030 R3733
Max.Drilling Diameter 1,500mm (4.92 ft) 1,500mm (4.92 ft) 2,000mm (6.56 ft) 2,500mm (8.20 ft) 3,000mm (9.84 ft) 3,300mm (10.83 ft)
Max.Drilling Torque 129kN.m
(95,146lbf.ft)
179kN.m
(132,024lbf.ft)
179kN.m
(132,024lbf.ft)
300kN.m
(221,269lbf.ft)
300kN.m
(221,269lbf.ft)
372kN.m
(274,373lbf.ft)
Rotation Speed 0~24rpm 0~16.2rpm 0~16.2rpm 0~21rpm 0~21rpm 0~20rpm
Thrust 88ton (194,007lbf) 88ton (194,007lbf) 88ton (194,007lbf) 122ton (268,964lbf) 122ton (268,964lbf) 122ton (268,964lbf)
Pull-up Force 129ton (284,396lbf) 129ton (284,396lbf) 129ton (284,396lbf) 201ton (443,129lbf) 201ton (443,129lbf) 201ton (443,129lbf)
Mast Tilting 22˚ 22˚ 26˚ 30˚ 32˚ 35˚
Platform Tilting 16˚ 16˚ 20˚ 16˚ 12.5˚ 10.5˚
Weight (Approx.)
-Including Clamping Device
21.8ton (48,061 lb) 27.8ton (61,289 lb) 28.5ton (62,832 lb) 36.0ton (48,061 lb) 21.8ton (79,366 lb) 41.9ton (92.374 lb)
Drill String NW200 NW200 NW200/NW300 NW300 NW300 NW300
Power Pack P2612C / P3618C / P4214D P2612C / P3618C / P4214D P2612C / P3618C / P4214D P3618C / P5318C / P4218D P3618C / P5318C / P4218D P6028C


rcd02



rcd03

Specification (Horizontal scroll)

SINGLE GRADE & DUAL GRADE 비교

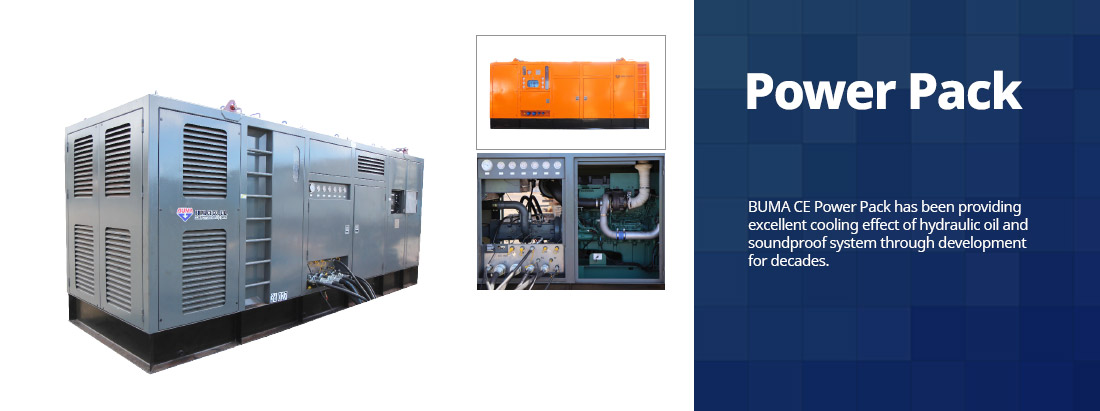

Model Emission
Compliance
Engine
Output & rpm
Hyd.Pump
250bar (Max. 350bar)
Size Weight
P2612C TIER2, 3, 4F 194kW / 260HP / 2,200rpm 228ℓ/min x 2 1,912W x 4,800L x 2,476H 7.5 ton
P3618C TIER3 268kW / 360HP / 2,100rpm 324ℓ/min x 2 1,912W x 4,800L x 2,476H 8ton
P3818C TIER4F 285kW / 388HP / 1,900rpm 324ℓ/min x 2 1,912W x 4,800L x 2,476H 8ton
P4214D TIER1 307kW / 418HP/ 1,800rpm 252ℓ/min x 2 1,900W x 4,800L x 2,340H 8.5ton
P4218D TIER1 307kW / 41BHP/ 1,800rpm 324ℓ/min x 2 1,900W x 5,400L x 2,300H 8.5ton
P5318C TIER3, 4F 399kW / 535HP / 2,100rpm 324ℓ/min x 2 1,912W x 5,400L x 2,562H 11ton
P5418V TIER3 397kW / 540HP / 1,800rpm 324ℓ/min x 2 1,912W x 5,400L x 2,562H 11ton
P5518V TIER4F 405kW / 551HP / 1,900rpm 324ℓ/min x 2 1,900W x 5,400L x 2,300H 11ton
P6028C TIER3, 4F 447kW / 600HP / 2,100rpm 504ℓ/min x 2 1,912W x 5,400L x 2,562H 11.5ton
P6128V TIER4F 450kW / 612HP / 1,800rpm 504ℓ/min x 2 1,912W x 5,400L x 2,562H 11.5ton

* Option:Application of differnt engine brand(Volvo, Caterpillar) is availavle.





rcd04

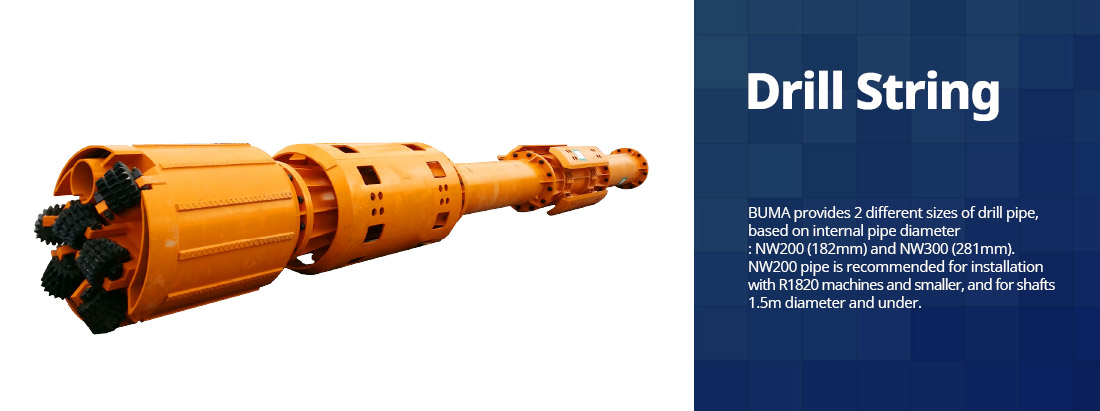

Drill String Feature

▪ Basic Drill String
To prevent buckling in the bottom part of the casing and for better verticality, the Basic Drill String is required.
The Basic Drill String is composed of a Drum Stabilizer, a Heavy Duty Space Pipe, a Heavy Duty Stabilizer and a Sub Drill Pipe (Reducing Pipe).

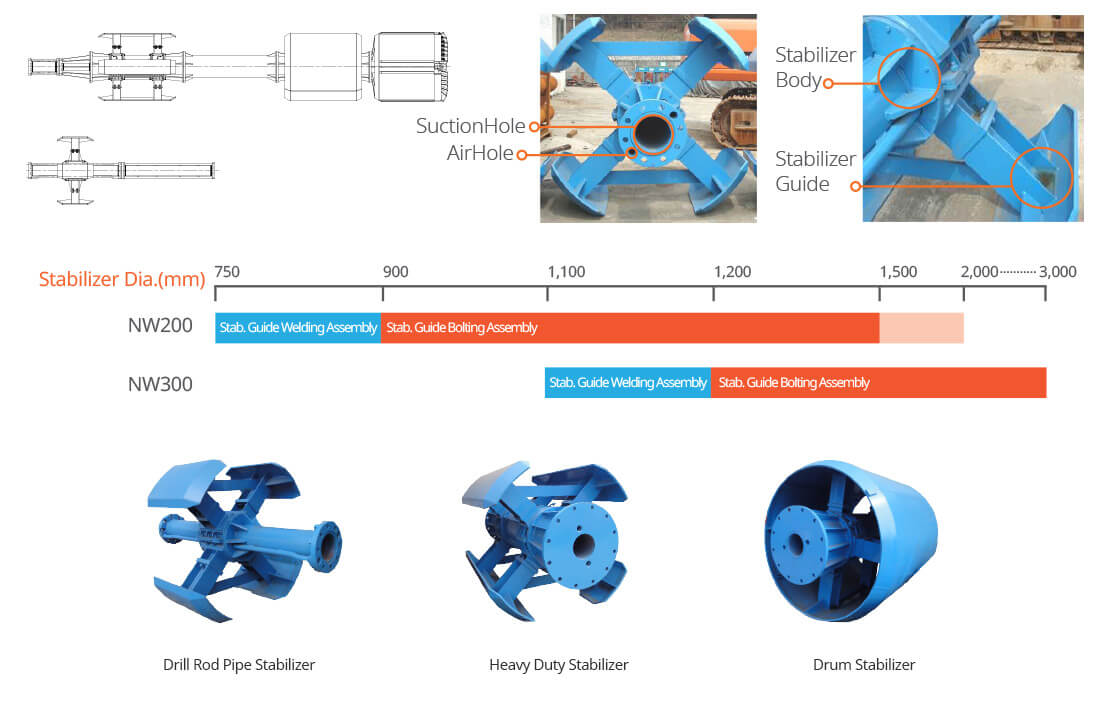

▪ Drill Rod Pipe Stabilizer
To prevent bending of the Drill String and keep verticality, we strongly suggest you use
1 Drill Rod Pipe Stabilizer for every 3 Drill Rod Pipes (1 Drill Rod Pipe = 3m).





rcd06

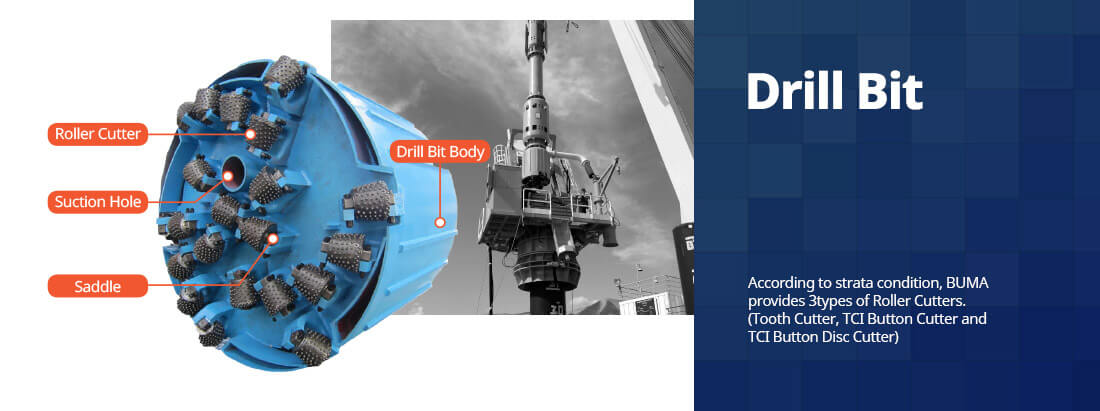

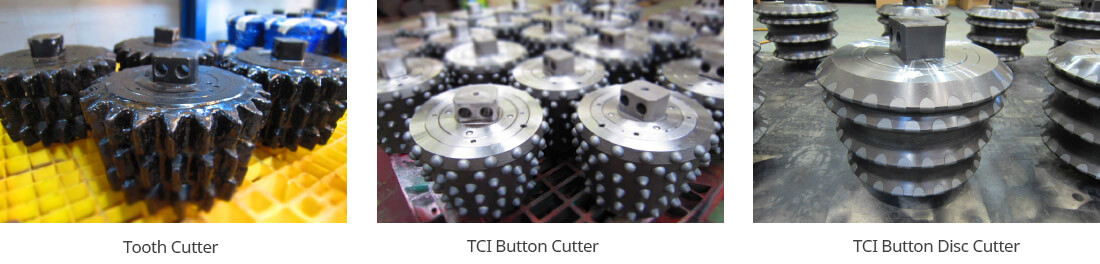

▪ TOOTH CUTTER
Designed for drilling soft soil and soft rock layers (0 ~ 75MPa).



▪ TCI BUTTON CUTTER (** TCI: Tungsten Carbide Insertion)
Designed for drilling hard rock layers (80 ~ 250MPa).



▪TCI Button Disc Cutter
Designed for drilling hard rock layers (80 ~ 350MPa).
**Drill bits are designed for use in both soil and rock layers.



rcd07



Specification (Horizontal scroll)

SINGLE GRADE & DUAL GRADE 비교
Drill Bit Cutting Diameter 850mm 1,050mm 1,350mm 1,650mm 1,830mm 2,300mm 2,750mm
Drill Bit Length 1,500mm 2,000mm 2,000mm 2,000mm 2,500mm 2,500mm 2,500mm
Suction Pipe NW200 NW200 NW200 / NW300 NW300 NW300 NW300 NW300
Roller Cutter 8SER. 8SER. 12SER. 12SER. 12SER. 12SER. 12SER.
-5˚ Cutter 1 1 1 1 1 1 1
+10˚ Cutter 2 2 2 3 3 7 11
+20˚ Cutter N/A N/A N/A 2 2 3 3
+35˚ Cutter 2 3 N/A N/A N/A N/A N/A
+40˚ Cutter N/A N/A 3 3 4 5 6
TOTAL 5 6 6 9 10 16 21
Weight 1,500kg 2,500kg 3,500kg 6,000kg 7,650kg 10,500kg 14,300kg
