PRODUCT

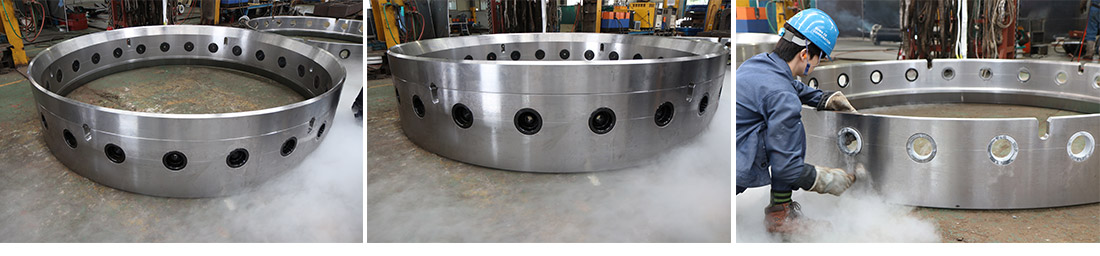

Casing Joint

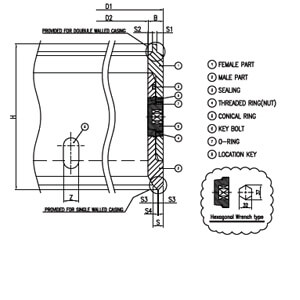

Genernal Type(Horizontal scroll)

Specification
osc D1 / D2 H B Conical Ring Threaded Ring Bolt Locating Key Sealing Weight
[mm] Q'ty Type Q'ty Type Q'ty Type Q'ty Type [mm] [kg]
700 / 620 380 40 8 CN60 8 TN60 8 M80 4 40 10 x 610 225
900 / 820 380 40 10 CN80 10 TN80 10 M80 4 40 10 x 785 293
1,000 / 920 380 40 10 CN80 10 TN80 10 M80 4 40 10 x 900 327
1,200 / 1,120 380 40 12 CN110 12 TN110 12 M80 4 40 12 x 1,075 396
1,300 / 1,220 380 40 12 CN110 12 TN110 12 M80 4 40 12 x 1,200 430
1,500 / 1,400 580 50 16 CN150 16 TN150 16 M90 4 50 12 x 1,370 927
1,800 / 1,700 580 50 20 CN150 16 TN150 20 M90 4 50 12 x 1,670 1,119
2,000 / 1,880 580 50 20 CN200 20 TN200 20 M100 4 50 12 x 1,860 1,414

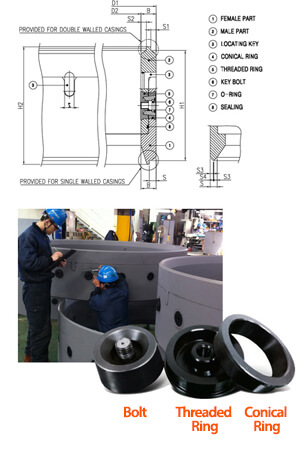

Heavy Duty Type(Horizontal scroll)

Specification
osc D1 / D2 H1 H2 B Conical Ring Threaded Ring Bolt Locating Key Sealing Weight
[mm] Q'ty Type Q'ty Type Q'ty Type Q'ty Type [mm] [kg]
1,500 / 1,400 585 625 so 16 165 16 T165 16 B42 4 so 10 x 1,370 1,049
1,800 / 1,700 585 625 so 20 165 20 T165 20 B42 4 50 10 x 1,670 1260
1,800 / 1,680 585 625 60 20 220 20 T220 20 B48 4 50 10 x 1,650 1,384
2,000 / 1,880 585 625 60 20 220 20 T220 20 B48 4 50 12 x 1,860 1,659
2,200 / 2,080 585 625 60 20 220 20 T220 20 B48 4 50 12 x 2,050 1,830
2,500 / 2,380 585 625 60 20 220 20 T220 20 B48 4 50 12 x 2,300 2,018
2,800 / 2,640 585 625 80 24 300 24 T300 24 B65 6 so 12 x 2,600 2,950
3,000 / 2,840 585 625 80 24 C300 24 T300 24 B65 6 so 12 x 2,800 3,250
