제품소개





지층이 불안정하여 공벽 무너짐을 방지하기위하여 Casing을 기초굴착깊이까지 삽입하는데 이를 All Casing 공법 (Benoto Method,
Shaft Drilling)이라고 합니다.Casing을 삽입하고 콘크리트 타설 후 케이싱을 다시 인발하기 위한 목적으로
Casing Oscillator가 사용되는데, 강력한 Oscillating Torque와 Lifting Force는 탁월한 수행 능력을 보여줍니다.
Hammer Grab와 함께 사용 시 빠른 굴착속도와 더불어 자갈층 및 호박돌층 굴착또한 가능합니다.

MOVIE

부마CE Casing Oscillator 장점

▪ Sliding Box의 연동성 : 유연하게 상하좌우 운동을 하는 Sliding Box부는 여러 방향에서 집중되는 부하를 상쇄시켜 Center Rod의 파손 가능성을 제거합니다.
▪ Hydraulic Control Box : Control Box와 Remote Controller를 통한 원격 제어로 인한 작업자 편리성 및 안정성 향상시킵니다.
▪ 강력한 Oscillating Torque & Lifting Force : 부마 자체 설계로 구성된 Oscillating Cylinder와 Lifting Cylinder는 Casing 압입 및 추출에 최적의 효율성을 보여줍니다.

co01

Casing Oscillator Method(Horizontal scroll)

1. Casing Shoe를 장착한 Starter Casing을 오실레이터에 삽입한다. 그다음 Casing은 볼트연결 방식으로 지속적으로 체결한다. 2. Casing이 삽입되는동안 내부 토사는 Hammer Grab를 이용하여 굴착한다. 주의할 점은 Casing내부 수위는 지하수위를 고려하여 항상 일정하게 유지 시킬수 있도록 한다. 3. Casing이 요구 깊이에 도달할때 까지 Casing을 지속적으로 체결 연결한다.
4. 철근망을 삽입하는데 적절한 위치에 유지하도록 한다. 5. 구간 연결방식의 Tremie Pipe를 이용하여 콘크리트를 타설한다. 구간별 콘크리트 타설 높이는 구간 Casing 끝단보다 항상 위에 유지하도록 한다. 6. 콘크리트가 타설되는 동안 구간별 Casing과 Tremie Pipe를 동시에 제거한다.




General Type (Horizontal scroll)

General Type
Model C1500G C2000G C2500G C3000G C3300G
Max.Casing Diameter 1.5m (4.9ft) 2.0m (6.6ft) 2.5m (8.2ft) 3.0m (9.8ft) 3.3m (10.8ft)
Max.Oscillating Torque 285ton.m
(2,061,408lbf.ft)
451ton.m
(3,262,088lbf.ft)
833ton.m
(6,025,097lbf.ft)
1,017ton.m
(7,355,971lbf.ft)
1,430ton.m
(10,343,204lbf.ft)
Max.Lifting Force 243ton (535,723lbf) 314ton (692,252lbf) 581ton (1,280,886lbf) 726ton (1,600,556lbf) 1,018ton (2,244,306lbf)
Lifting Stroke 600mm (23.6in) 600mm (23.6in) 650mm (25.6in) 650mm (25.6in) 650mm (25.6in)
Max.Clamping Force 197ton (434,311lbf) 257ton (566,588lbf) 402ton (886,258lbf) 509ton (1,122,153lbf) 509ton (1,122,153lbf)
Weight (Approx.) 26ton (57,320lb) 31ton (68,343lb) 48ton (105,822lb) 53ton (116,845lb) 66ton (145,505lb)
Overall Width 3,261mm (10.7ft) 3,589mm (11.8ft) 4,240mm (13.9ft) 4,850mm (15.9ft) 5,300mm (17.4ft)
Overall Length 6,931mm (22.7ft) 7,921mm (26.ft) 8,961mm (29.4ft) 9,171mm (30.1ft) 10,420mm (34.2ft)
Overall Height 2,210mm (7.3ft) 2,210mm (7.3ft) 2,575mm (8.4ft) 2,655mm (8.7ft) 2,750mm (9.ft)
Power Pack P2612C / P3618C
P3818C / P4214D
P2612C / P3618C
P3818C / P4214D
P3618C / P5318C
P5518V / P4218D
P5318C /
P5518V / P4218D
P5318C / P5518V
P6028C / P6128V




Heavy Duty Type (Horizontal scroll)

Heavy Duty Type
Model C2000H C2500H C3000H C3300H C3600H
Max.Casing Diameter 2,000mm (6.6ft) 2,500mm (8.2ft) 3,000mm (9.8ft) 3,300mm (10.8ft) 3,600mm (11.8ft)
Max.Oscillating Torque 721ton.m
(5,215,000lbf.ft)
942ton.m
(6,813,495lbf.ft)
1,185ton.m
(8,571,117lbf.ft)
1,523ton.m
(11,015,874lbf.ft)
2,041ton.m
(14,762,573lbf.ft)
Max.Lifting Force 581ton (1,280,886lbf) 726ton (1,600,556lbf) 804ton (1,772,517lbf) 1,120ton(2,469,177lbf) 1,257ton (2,771,211lbf)
Lifting Stroke 600mm (23.6in) 650mm (25.6in) 650mm (25.6in) 650mm (25.6in) 650mm (25.6in)
Max.Clamping Force 402ton (886,258lbf) 509ton (1,122,153lbf) 509ton (1,122,153lbf) 532ton (1,172,859lbf) 579ton (1,276,476lbf)
Weight (Approx.) 42ton (92,594lb) 54ton (119,049lb) 58ton (127,868lb) 70ton (154,323lb) 87ton (191,802lb)
Overall Width 3,827mm (12.6ft) 4,210mm (13.8ft) 4,850mm (15.9ft) 5,300mm (17.4ft) 5,740mm (18.8ft)
Overall Length 8,431mm (27.7ft) 9,066mm (29.7ft) 9,171mm (30.1ft) 10,420mm (34.2ft) 10,840mm (35.6ft)
Overall Height 2,525mm (8.3ft) 2,655mm (8.7ft) 2,655mm (8.7ft) 2,780mm (9.1ft) 2,900mm (9.5ft)
Power Pack P2612C / P3618C
P3818C / P4214D
P3618C / P5318C
P5518V / P4218D
P5318C
P5518V / P4218D
P5318C / P5518V
P6028C / P6128V
P6028C / P6128V




Tiny Type(Horizontal scroll)

Tiny Type
Model C1000T C1300T C1500T C2000T C2500T
Max.Casing Diameter 1,000mm (3.3ft) 1,300mm (4.3ft) 1,500mm (4.9ft) 2,000mm (6.6ft) 2,500mm (8.2ft)
Max.Oscillating Torque 86ton.m
(622,039lbf.ft)
206ton.m
(1,490,000lbf.ft)
228ton.m
(1,649,126lbf.ft)
306ton.m
(2,213,301lbf.ft)
539ton.m
(3,898,592lbf.ft)
Max.Lifting Force 99ton (218,258lbf) 129ton (284,396lbf) 201ton (443,129lbf) 243ton (535,723lbf) 314ton (692,252lbf)
Lifting Stroke 320mm (12.6in) 400mm (17.7in) 450mm (17.7in) 450mm (17.7in) 450mm (17.7in)
Max.Clamping Force 64ton (141,096lbf) 133ton (293,215lbf) 157ton (346,126lbf) 183ton (403,446lbf) 226ton (498,245lbf)
Weight (Approx.) 6ton (13,228lb) 13ton (28,660lb) 15.1ton (33,290lb) 20.3ton (44,754lb) 25ton (55,116lb)
Overall Width 2,239mm (7.3ft) 2,539mm (8.3ft) 2,815mm (9.2ft) 3,345mm (11.ft) 3,965mm (13.ft)
Overall Length 3,145mm (10.3ft) 3,990mm (13.1ft) 4,315mm (14.2ft) 5,272mm (17.3ft) 6,280mm (20.6ft)
Overall Height 1,250mm (4.1ft) 1,600mm (5.2ft) 1,600mm (5.2ft) 1,685mm (5.5ft) 1,890mm (6.2ft)

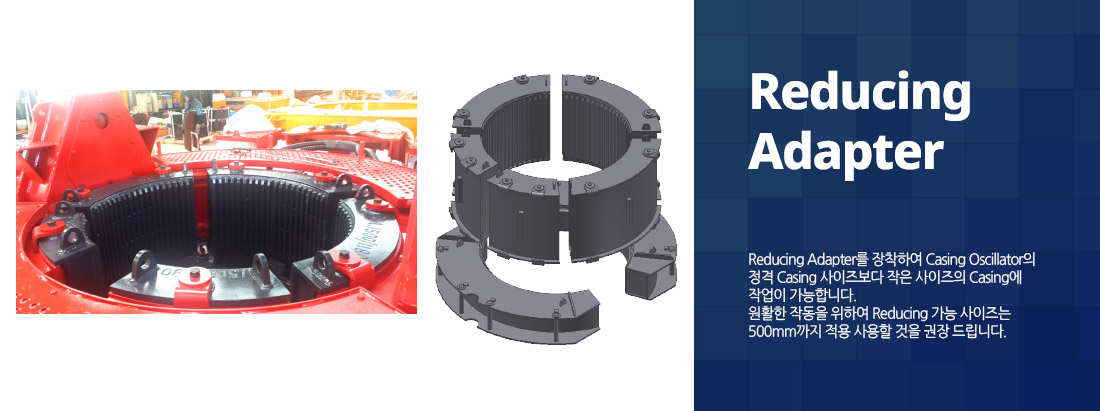

osc03

rcd03

Specification (Horizontal scroll)

SINGLE GRADE & DUAL GRADE 비교
Model Emission
Compliance
Engine
Output & rpm
Hyd.Pump
250bar (Max. 350bar)
Size Weight
P2612C TIER2, 3, 4F 194kW / 260HP / 2,200rpm 228ℓ/min x 2 1,912W x 4,800L x 2,476H 7.5 ton
P3618C TIER3 268kW / 360HP / 2,100rpm 324ℓ/min x 2 1,912W x 4,800L x 2,476H 8ton
P3818C TIER4F 285kW / 388HP / 1,900rpm 324ℓ/min x 2 1,912W x 4,800L x 2,476H 8ton
P4214D TIER1 307kW / 418HP/ 1,800rpm 252ℓ/min x 2 1,900W x 4,800L x 2,340H 8.5ton
P4218D TIER1 307kW / 41BHP/ 1,800rpm 324ℓ/min x 2 1,900W x 5,400L x 2,300H 8.5ton
P5318C TIER3, 4F 399kW / 535HP / 2,100rpm 324ℓ/min x 2 1,912W x 5,400L x 2,562H 11ton
P5418V TIER3 397kW / 540HP / 1,800rpm 324ℓ/min x 2 1,912W x 5,400L x 2,562H 11ton
P5518V TIER4F 405kW / 551HP / 1,900rpm 324ℓ/min x 2 1,900W x 5,400L x 2,300H 11ton
P6028C TIER3, 4F 447kW / 600HP / 2,100rpm 504ℓ/min x 2 1,912W x 5,400L x 2,562H 11.5ton
P6128V TIER4F 450kW / 612HP / 1,800rpm 504ℓ/min x 2 1,912W x 5,400L x 2,562H 11.5ton

* Option : 다른 브랜드의 엔진 (Volvo, Caterpillar) 적용도 가능합니다.
